Organizations - Proxy reference

Updated

Overview

If you direct traffic for insider risk agents through a proxy, use the Proxy settings to identify the proxy method, domain name or IP address, and port to use for that traffic.

For backup agent proxy settings, see Organizations - Device Backup Defaults - Network settings reference.

Proxy settings

To view an organization's proxy settings:

  1. Select Administration > Environment > Organizations.
  2. Select an organization.
  3. Select the Proxy tab. If there's no Proxy tab in your environment, select the Insider Risk tab and go to the Proxy section.

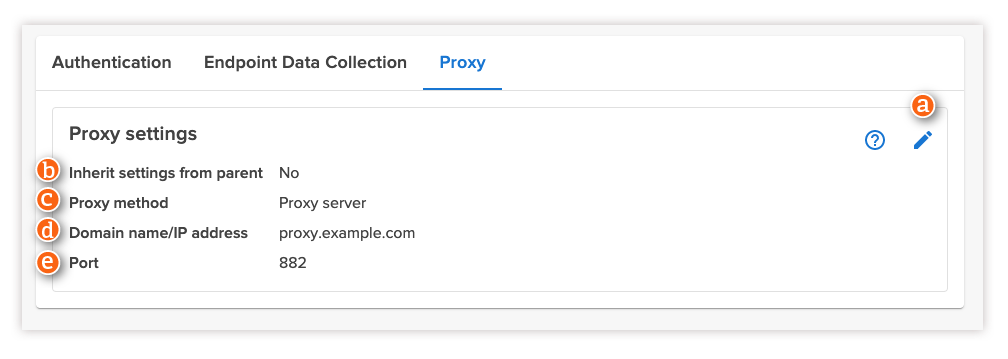

    Proxy tab with annotations
Item Description
a Edit Edit icon Click to update the Proxy settings.



When the panel opens:

  1. Select the Proxy method.
  2. If needed, update the settings:
    • Domain name or IP address and Port
    • PAC URL
  3. Click Save.
b Inherit settings from parent Configures the organization to take on the proxy settings of the parent organization. When enabled, settings must be edited at the parent organization level.
c

Proxy method

The method used to connect to the proxy.

  • None
  • Proxy server (shown in image)
  • PAC file (not shown in image)
    • URL of your proxy auto-config (PAC) file
      • Example 1: https://example.com/proxy.pac
      • Example 2: https://192.0.2.50/proxy.pac
  • System determined (not shown in image)
    • If you select System determined, the operating system determines the proxy connection information.
    • Windows devices use the WinHTTP setting and must be set via the netsh.exe command. User session proxy settings defined in a web browser are not used by the Code42 agent.
    • The System determined option does not support PAC files on Windows. PAC files must be explicitly defined via the PAC file option above.

Organizations with Linux devices must use the Proxy server option (PAC and system proxy are not supported).
d Domain name/IP address When Proxy server is selected as the method, the domain name or IP address of that server.
e Port When Proxy server is selected as the method, the port to use for traffic to that server.
